Heavy-Duty Vehicle Tracker

$99.95

*with the purchase of 3+ tracking devices.

SKU: PNT1001 JBUS Category: Tags: , , ,

A feature-packed Heavy-duty vehicle GPS tracking and management solution!

The PNT1001 JBUS is a powerful GPS tracking solution that’s designed for Plug and Play ease. A separate cable for your heavy-duty vehicle application (included in price) may be required. We’ll confirm your requirements prior to shipping.

Loading...

The simple way to manage your Heavy Duty vehicle fleet!

The PNT1001 JBUS is a powerful GPS tracking solution that’s designed for Plug and Play ease. A separate cable for your heavy-duty vehicle application (included in price) may be required. We’ll confirm your requirements prior to shipping.

AutoConnect GPS is a connected device that requires a separately billed monthly wireless Service Plan ($23.95/month/device) to communicate over the cellular network. A one-time $20 network activation fee is not included in the unit price. All cellular data is included in the price of the monthly service plan from AutoConnect GPS.

Monitoring and Alert Highlights

Live Tracking Live Location / At a glance see where your entire fleet is located on Google Maps (Desktop and Mobile App)!

Real-time Alerts Real-time Alerts / Get text or email notifications for just about any tracked fleet activity and device tampering!

Driver Behavior Driver Behavior / Track speed, acceleration, braking, RPM, and idling and start reducing wasteful driving!

Vehicle Health Vehicle Health / Schedule and manage the health of your fleet pro-actively plus monitor engine diagnostic trouble codes!

Geofence Landmarks Geofence Landmarks / Create virtual perimeters around any area on the map and record associated activity!

Reporting and Analytics Reporting & Analytics / Gain insight and make better decisions with extensive fleet performance reporting and analytics!

Details

Versatile and value-packed this quick install GPS device directly monitors and communicates vital vehicle information. Using industry standard CAN bus protocols, this intelligent device can be quickly and safely installed on a variety of JBUS equipped vehicles as it auto-detects J1939, J1708 configurations negating the cost of professional installation. A compact and durable design offers industry-leading fleet location intelligence and driver behavior modification features when combined with the world-class AutoConnect GPS dashboard mapping interface and mobile app.

No external antennas or power connectors needed as both GPS and cellular antennas are built in and powered through the JBUS port. It includes a built-in backup battery to report disconnections and ultra-low current draw to protect vehicle batteries from draining unnecessarily. It also has an over speed warning beeper for audible in-cab feedback. Firmware upgrades are done over-the-air so the device is always up to date.

Hardware Features

  • JBUS Port Connection
  • Integrated GPS Antenna
  • Quad-Band Cellular Antenna
  • Up to 24 Volt Operational Voltage
  • Backup Battery w/Disconnect Alert
  • Data Authentication Intelligence ‘Ack-Back’
  • Over-Speed Warning Beeper
  • Motion Sensor

Alerts

  • Over-Speed (default 120 km/h)
  • Low Battery
  • Ignition On/Off
  • Possible Towing
  • Service Schedules
  • Excessive Idling
  • Landmark Entrances/Exits
  • Excessive Acceleration/Hard Braking

Included

  • All Cellular Data (no overages)
  • Unlimited Admin Users
  • Scheduled Reports
  • Driver Scorecards
  • 12-months Trip History Retention
  • Groups (Custom Fleet Hierarchy)
  • API Access
  • Customer Support

Dimensions

PNT2001JBUS

Installation

Installation

Receive and install your AutoConnect GPS devices. The easy plug and play unit simply plugs directly onto the factory diagnostic (JBUS) port.

The actual location of JBUS port will vary by vehicle make, model and year.
Port may be behind a cover panel (panel should open without the use of tools).

Locate the JBUS Port

Step 1 JBUS Installation

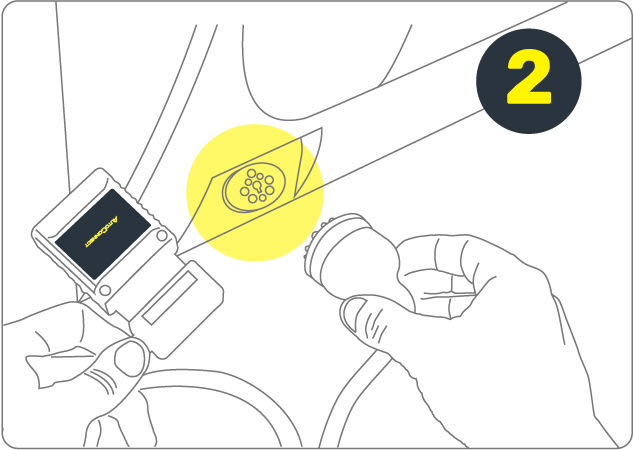

Connect the GPS Device

JBUS GPS Tracking Device

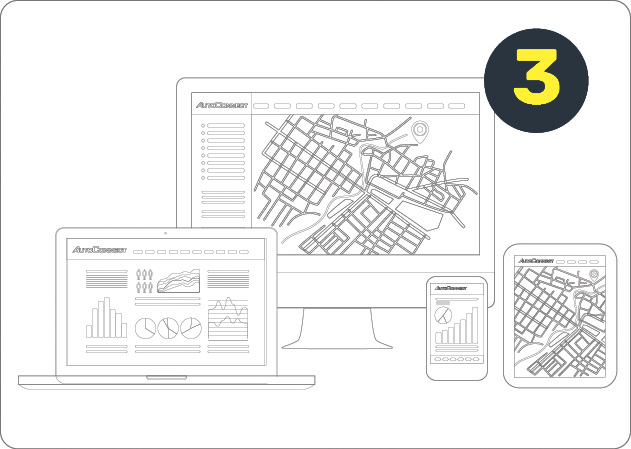

Start Tracking!

Warranty

The manufacturer warrants to the original purchaser of the AutoConnect GPS product, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a one year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the AutoConnect GPS product which the manufacturer agrees to be defective.

All warranties apply to the original purchaser ONLY. Repairs or replacement of defective items shall remain at the discretion of the manufacturer. All other parts, components, accessories, and/or optional equipment pertaining to the messaging system are not included in the manufacturer’s warranty. This warranty is non-transferable. Request for warranty service from any Factory Authorized Dealer must be accompanied with the original purchase receipt. Failure to comply with any of these conditions may result in the warranty being void and/or refused. This warranty does not cover the following: removal and reinstall labor charges, shipping charges, abuse, misuse, or accidental damages to the automobile, and/or parts thereof. This warranty is void upon modification, repairs, or alterations to any part of the product. The manufacturer does not guarantee or insure against theft of the vehicle or its contents. The manufacturer shall not be held liable for any consequential damages due to a breach of this or any other warranty, expressed or implied. This warranty gives you specific legal rights. Your specific legal rights may vary for each region.

CERTAIN DAMAGES EXCLUDED – The manufacturer expressly disclaims any liability or responsibility for incidental damages caused by the product, including economic loss, loss of use of the product, car rentals, or any other costs relating to the care and custody of the product. The manufacturer disclaims liability or responsibility for any consequential damages caused by the product or resulting from its use, including the cost of repairing or replacing other property damaged by the product or caused by its use, whether or not the product is working properly. The product is intended to deter unauthorized use of the vehicles in which it is installed. The manufacturer does not warrant that the product is fool-proof against theft and/or vandalism and/or human error or misuse. The manufacturer accepts no liability or responsibility for any damage of any kind whatsoever caused to any vehicle in which the product is installed or any resulting damage from its use. The manufacturer accepts no responsibility or liability for any damage resulting to or theft of the vehicle or its contents caused or alleged to be caused, directly or indirectly, by a failure of the product.

FCC Notice

“The Modem” in this device complies with Part 15 of the FCC rules. Operation of this device is subject to the following conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.
  3. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance void the user’s authority to operate this device.
